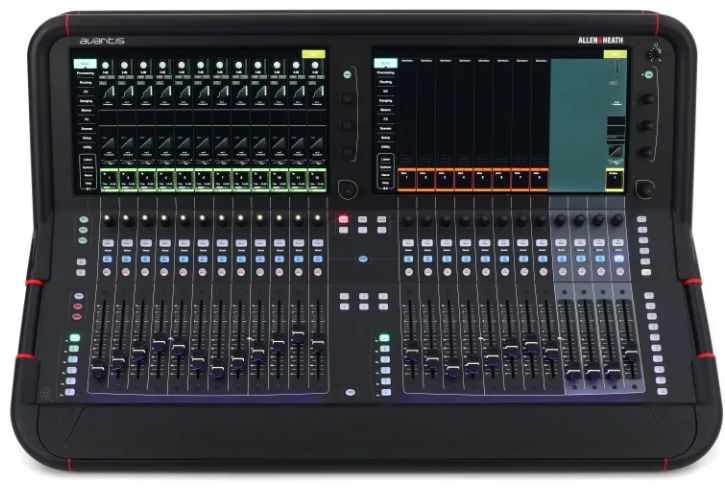

Allen and Heath Avantis

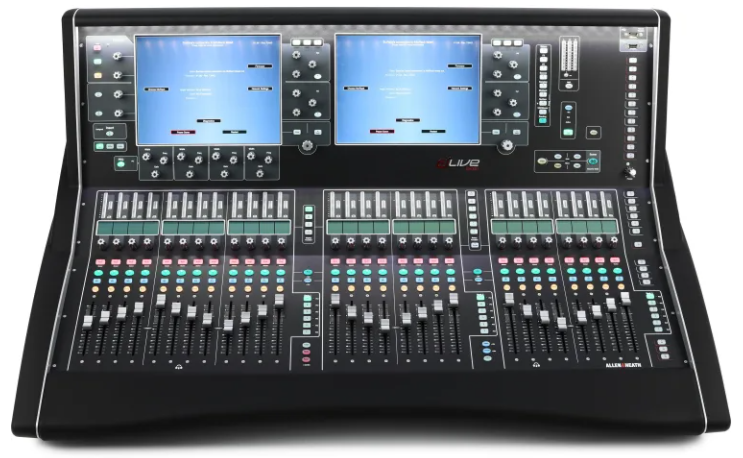

Allen and Heath dLive
| Specification | Allen & Heath Avantis | Allen & Heath dLive S5000 |
|---|---|---|
| Type | Digital Mixer | Digital Control Surface |
| Channels | 64-channel / 42 bus | 28 channel faders with 6 layers |
| Faders | 24 (6 layers) | 28 |
| Touchscreens | Dual 15.6" | Dual 12" |
| Mic/Line Inputs | 12 XLR inputs | 8 x XLR |
| Line Outputs | 12 XLR outputs | 8 x XLR (line level) |
| AES/EBU I/O | 1 AES input | 2 x XLR (AES3 in), 3 x XLR (AES3 out) |
| MADI I/O | Not specified | Not specified |
| I/O Ports | 2 I/O ports (128x128 at 96kHz) | 2 x card slots (128x128 channels each) |
| Networking | SLink, Dante, MADI, Waves, gigaACE | 2 x RJ45 Gigabit Ethernet, 2 x gigaACE Link Ethernet, 2 x DX link EtherCon ports |
| Effects Processing | 12 RackExtra FX slots | 16 RackFX |
| Expandability | SLink port for expanders and stage boxes | Supported via MixRacks and expanders |
| Sample Rate | 96kHz | 96kHz |
| Additional Features | dPack software, Word Clock I/O | Dual redundant hot-swappable power supply, high-grade metal construction |
| Phantom Power | 12 channels | 8 channels |
| USB Connectivity | Not specified | 3 x USB Type A |
| Word Clock | Yes | In, Out |
| Construction | Full metal chassis | High-grade metal construction |
| Weight | Not specified | 62 lbs. |
Allen and Heath Avantis and dLive Price Tracker
Prices updated Fri, August 21st, 2026.
Allen & Heath Avantis 64-channel Digital Mixer
$14,999.00
Sweetwater.com
Major Differences Between the Avantis and dLive
- Fader and Channel Configuration: The Avantis has 24 faders (across 6 layers) for managing 64 channels, whereas the dLive S5000 has 28 faders directly accessible, designed for use with external MixRacks for channel control.
- Physical Inputs and Outputs: The Avantis has a higher count of physical XLR inputs and outputs directly on the console.
- Networking and I/O: The dLive S5000 includes more advanced networking options and dual card slots for expandability, reflecting its design for integration into larger, more complex systems.
- Construction and Reliability: The dLive S5000 emphasizes rugged construction with dual redundant power supplies and a tank-like build, making it potentially a better fit for more demanding and/or disruptive environments like live performance setups.
- Software Features: The Avantis comes pre-loaded with dPack, offering enhanced sound-shaping tools, while the dLive system is known for its flexibility and can be expanded and customized extensively through additional hardware and software.
Similarities Between the two Mixers
- Digital Technology: Both mixers incorporate advanced digital processing and routing capabilities, with a focus on live sound mixing.
- Touchscreen Interface: Both mixers have intuitive touchscreens for navigation and control, though the Avantis has larger screens.
- Sample Rate: Support for high-resolution audio at 96kHz.
- Expandability: Options for network and digital expansion, including protocols like Dante and Waves SoundGrid, catering to complex audio setups.
