Parts List for this Build




GUITAR
Ibanez JEM JR






BRIDGE HUMBUCKER
DiMarzio Crunch Lab






NECK HUMBUCKER
DiMarzio True Velvet Middle






MIDDLE SINGLE
Seymour Duncan Mark Holcomb






BRIDGE SWAP
Licensed Floyd Rose Special
Description
Created by the Guitar Chalk Editorial
Using the Ibanez JEM JR (the HSH Steve Vai signature model) we're doing a hypothetical pickup upgrade suggestion with two unique humbuckers and a single coil middle pickup. We'll also recommend a swap of the existing locking tremolo for a licensed Floyd Rose system.
Here's what the final product will look like:






We use a high output DiMarzio Crunch Lab at the bridge and two softer/smoother pickups for the middle and neck positions (a DiMarzio True Velvet single coil and a Seymour Duncan Mark Holcomb neck humbucker).
Bridge Humbucker
First we go to the Guitar Configurator and select the Ibanez JEMJRWH with separate HSH options (non-pair humbuckers), which produces the following parts options:






Bridge and neck humbucker along with a middle single coil and Floyd Rose-style bridge selection options.

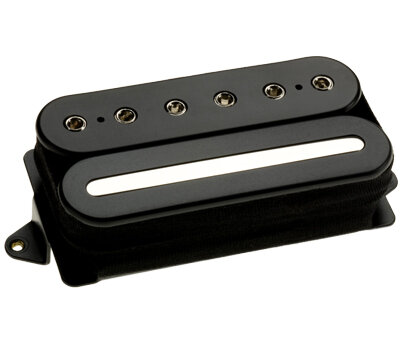

Since Steve Vai uses DiMarzio pickups we're using the Crunch Lab at the bridge position, which will give us a hot, high-output pickup with a built in rail that will pair nicely with our middle single coil. It will also give us some extra bite on higher notes and lead runs.






We add the DiMarzio Crunch Lab bridge pickup to our Ibanez JEM.
Middle Single Coil
For the middle single coil pickup, we'll pick from a selection of Stratocaster middle rails, looking for something on the softer end of the output spectrum to balance with the heavy output from the bridge. Again, the True Velvet by DiMarzio is a good fit, with a bluesy response and a white casing that matches the bridge design.






Again, DiMarzio comes through with the True Velvet middle pickup.
Neck Humbucker

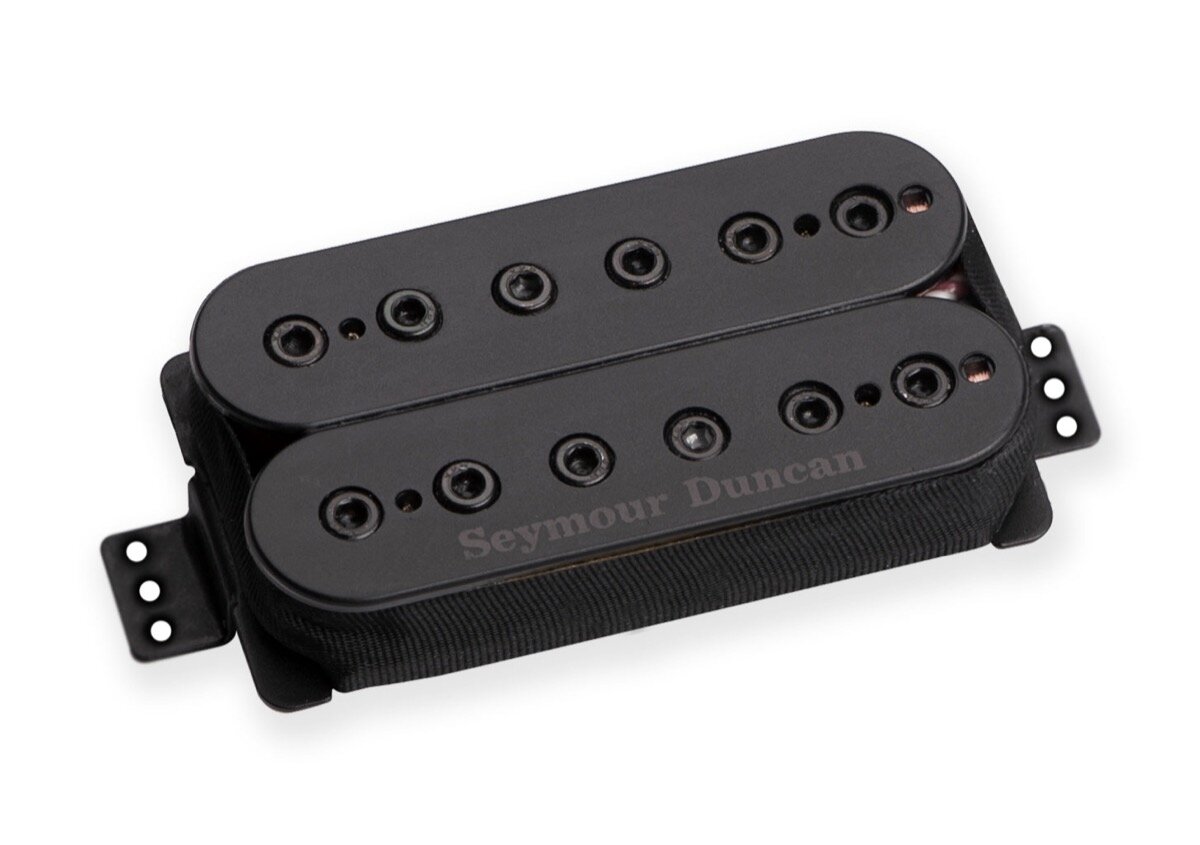

For the neck position, we're breaking ranks from DiMarzio and going with the neck humbucker from the Seymour Duncan Mark Holcomb signature set.






The HSH configuration is complete with a Seymour Duncan Mark Holcomb signature neck humbucker.
The output of Holcomb's neck humbucker is softer than the Crunch Lab, giving us some smoothing out and thickness on the lower end of our tone.
Bridge
Just for fun, we throw an actual licensed Floyd Rose Special into this build, since the JEM JR's bridge is just a stock Ibanez mimic.






Finished build in the Guitar Configurator.
BUILD DETAILS
- Guitar: Ibanez JEM JR Steve Vai Signature
- Pickup Configuration: HSH
- Bridge Humbucker: DiMarzio Crunch Lab
- Magnet Type: Ceramic
- DCR: 11.03
- Polls: Beveled and Rail pair
- Neck Humbucker: Seymour Duncan Mark Holcomb Neck
- Magnet Type: Ceramic
- DCR: 8.02
- Pickup Width: 3.050"
- Pickup Depth: 1.435"
- Middle Pickup: DiMarzio True Velvet Single Coil Middle
- Magnet Type: Alnico 5
- Wiring: 2 Conductor
- Bridge: Floyd Rose Special
Resources & Documentation
Share this build article:
Your Questions or Comments
If you have questions about this guitar, the parts we selected, or comments about the build in general, feel free to drop those in the comments section below. We'd also love to hear about your own upgrade experience, particularly if it sheds light in any of the parts mentioned in this article.
