QUICK HIT: A simple list of guitar amps with line out and/or direct out connections that allow you to send a line-level signal (preamp only) directly to a PA system or external power amp.
What most of us understand as a guitar amp is usually two parts combined into one unit: A preamp and power amp. Most EQ and gain (volume going into the preamp) is controlled at the preamp level before it gets to the power amp. This is why you have a gain and master volume or a channel volume and master volume on your amp. A combo amp combines all three of a preamp, power amp, and speaker into one box.
In this article we're going to roundup guitar amps with a line out (or direct out) connection built in.
You can also checkout our main guide for a list of our best guitar amp recommendations.
With these amps the following functionality is possible:
- You can bypass your power amp entirely
- You can send a "line level" signal straight into a PA system or mixer
- You can send a "dry" signal straight into a PA system or mixer
- You can add an external power amp
The Mesa Boogie Recording preamp is a good example of a guitar amp with a line out:
The Mesa Boogie Recording preamp has a line out.
Here's a look at the back of the Recording preamp:
Back of the Mesa Boogie preamp.
You have two stereo outputs on the back: A record out for going to a mixing console and a live out for going to a power amp.
I'll do a list for each of the following categories:
- Acoustic Amps
- Electric Combos
- Electric Heads
- Preamp-only
Top Picks from This List
Amps | Title | Rated | Browse |
|---|---|---|---|
 | Fishman Loudbox Mini | n/a | |
 | Boss Katana 100 series | n/a | |
 | Hughes & Kettner Tubemeister | n/a |
Search for other amplifiers to compare and/or check pricing
Compare more amps
We have a bunch of amps in our database that can be added to the comparison bar that gets pulled up in the above table. Look around and add some if you want to compare other options.
Identifying Line and Direct Out Connections
There are usually a lot of different connections on the back of a guitar amp, which can be hard to decipher. I'll go over examples of line out and direct out connection, as well as some of the other ports you might see.
Example of a Line Out Jack
A line out or "line level" output jack will usually be a quarter-inch (TRS) instrument cable connection that can be used to send a signal to a power amp, recording interface, or PA system, and looks like this:
Example of a "Line Out" connection jack.
Example of a Balanced Direct Out Jack
A direct out will run through an XLR jack and will send a balanced signal, which is useful to going straight into a PA system. This is why you always see balanced XLR outputs on the back of acoustic guitar amps.
Example of a balanced direct out XLR connection on the back of a guitar amp.
Other jacks you might notice on the back of a guitar amp include - but are not limited to - the following:
- Speaker outs
- MIDI ins or outs
- Footswitch jack
- Send and return jacks (effects loop)
Make sure that if you're looking for a line or direct out that you don't confuse them with any of these. Almost all amps have an external speaker jack, but it's different than a line or direct out. Just make sure to read the labels near each port.
Acoustic Guitar Amps with Line Out Connections
Almost every acoustic amp has a balanced direct out. If it doesn't, we'd be quite hesitant to recommend it. We've listed some of the most common acoustic amps here all of which have at least a direct out (some also have a line out). If you want to name an additional acoustic amp with line out or direct out connections, leave it in the comments section.
Amps | Title | Rated | Browse |
|---|---|---|---|

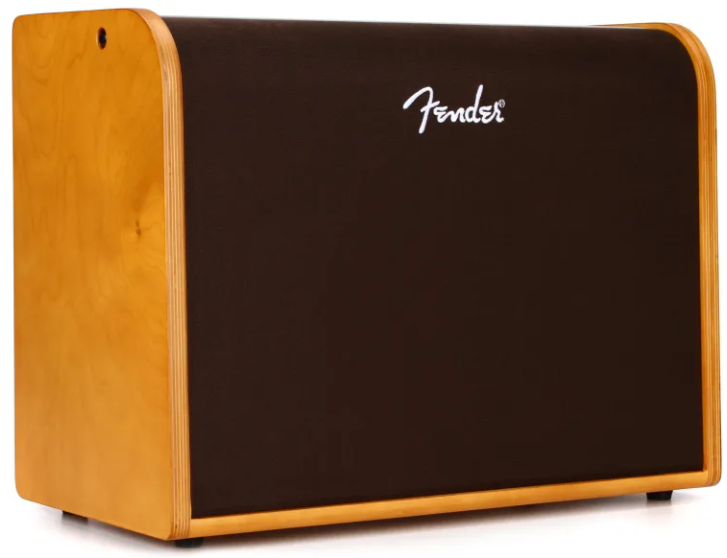

 | Fender Acoustic 100 / balanced XLR out | n/a | |
 | Fender Acoustisonic 40 / Balanced XLR out | n/a | |

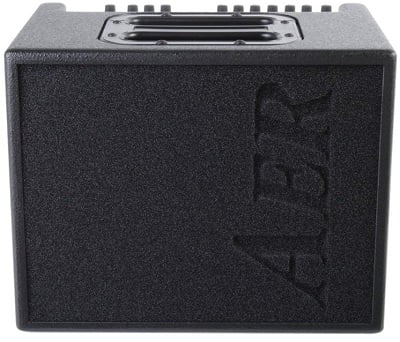

 | AER Compact 60/4 Tommy Emmanuel Combo / Balanced XLR out, line level out | n/a | |
| Fishman Loudbox Mini Combo Amp / Balanced XLR out | n/a | |
 | Marshall AS50D Combo Acoustic Amp / Balanced direct out, line out | n/a | |
 | Mesa Boogie Rosetta One:Ten / Balanced Direct Out (multi-channel) | n/a | |

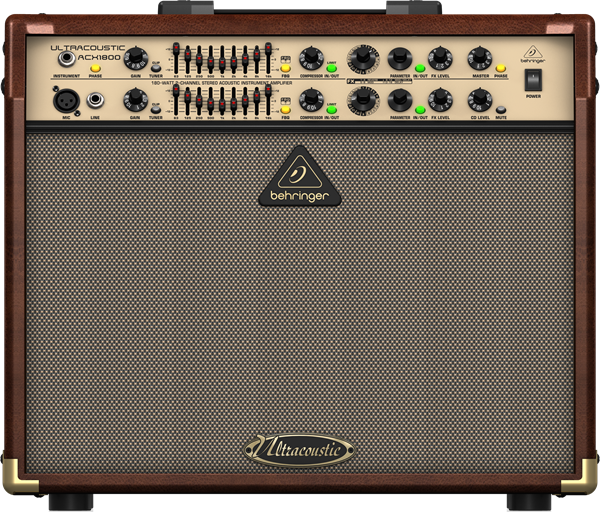

 | Behringer Ultracoustic ACX1800 / Stereo balanced direct outs | n/a | |

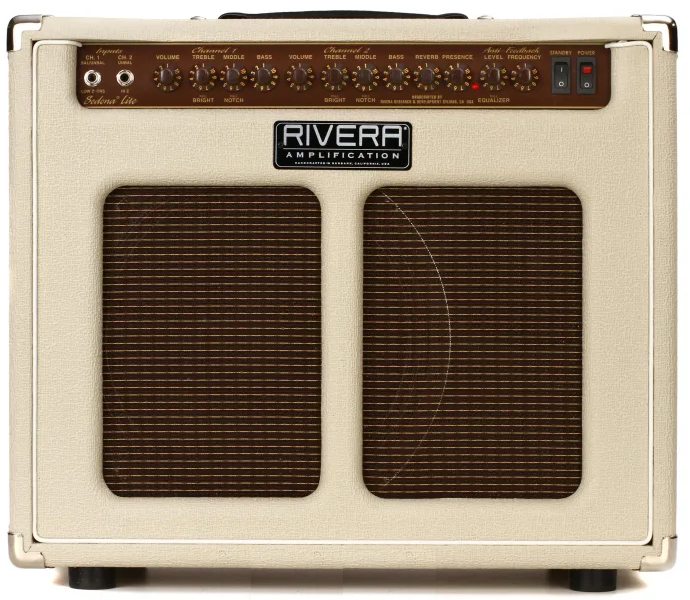

 | Rivera Sedona Lite Acoustic Amp / Balanced direct out | n/a | |

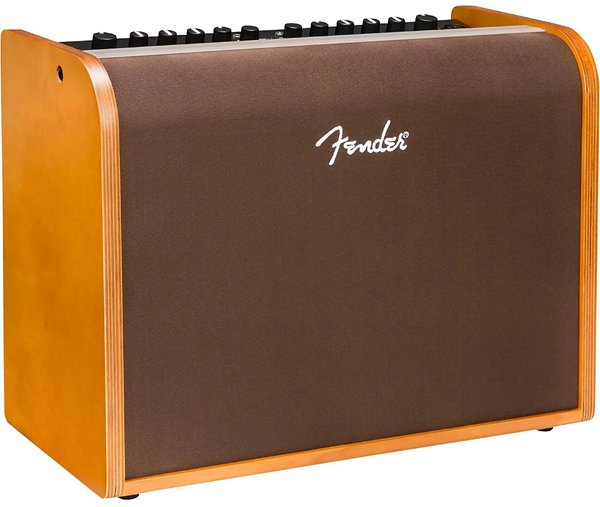

| Fender Acoustic Pro 100 | n/a |
Combo Guitar Amps with Line Out (preamp, power, and speaker)
As I mentioned earlier, combo amps have a preamp, power amp, and a built-in speaker, meaning you don't need any additional pieces to hear your sound. Finding combo amps with line out connections used to be a rarity, but in recent years they've become far more common. Again, be careful to avoid getting "speaker outs" confused with "line outs" as they are not the same thing.
Amps | Title | Rated | Browse |
|---|---|---|---|
 | Line 6 Spider V 120 / Direct out | n/a | |

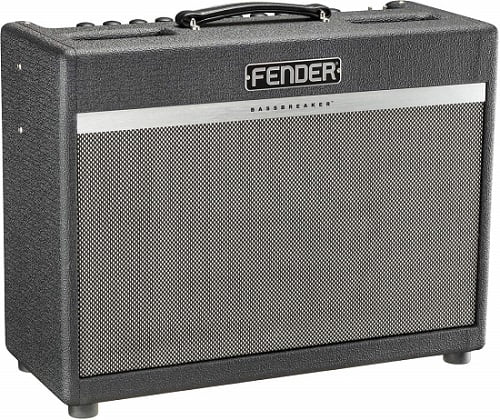

 | Fender Bassbreaker 30R / Direct out | n/a | |

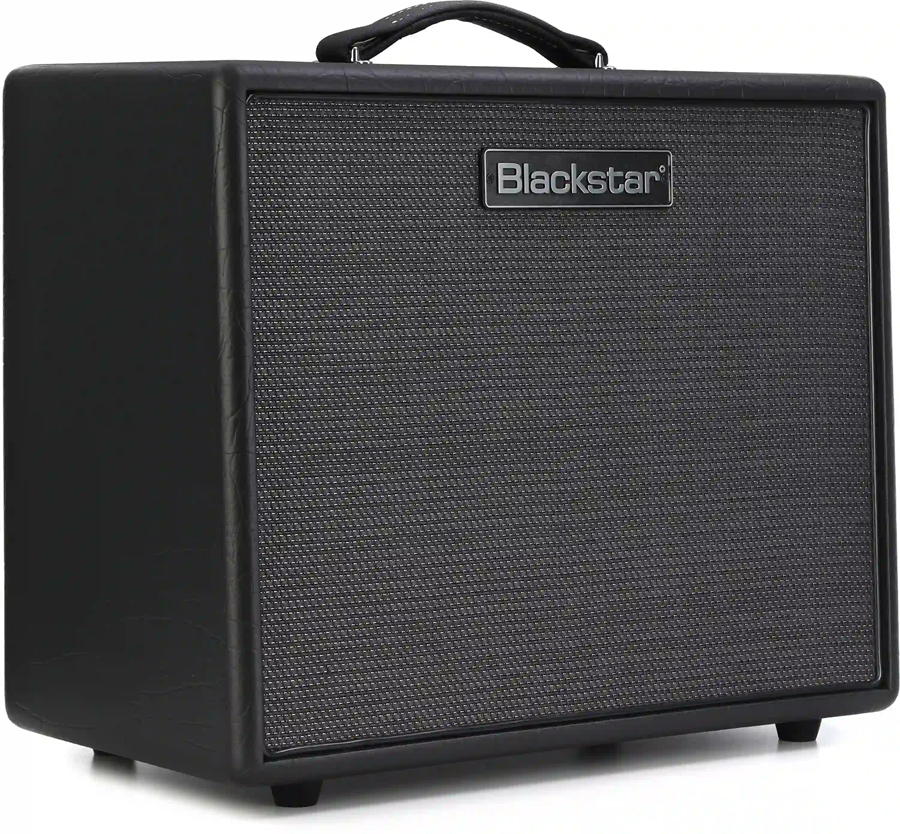

 | Blackstar HT20R MKII Combo Amp / Emulated direct and line out | n/a | |

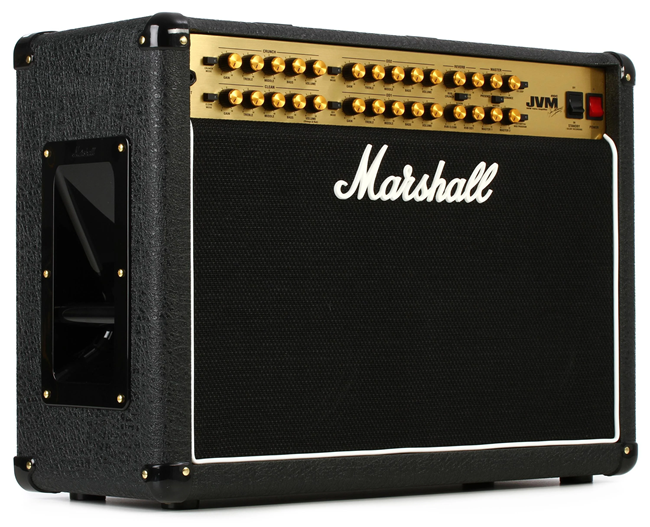

 | Marshall JVM410C Tube Combo Amp / Emulated direct out, serial loop | n/a | |
 | Boss Nextone Artist Combo Amp / Emulated direct out, serial loop | n/a | |

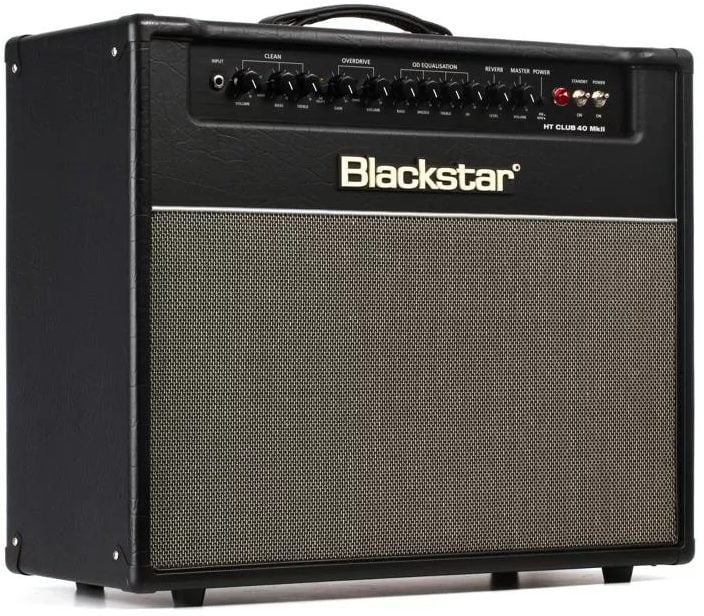

 | Blackstar HT Club 40 Mark II Combo Amp / Emulated direct out and line out | n/a | |
| Boss Katana 100 Combo Amp / Line out | n/a | |

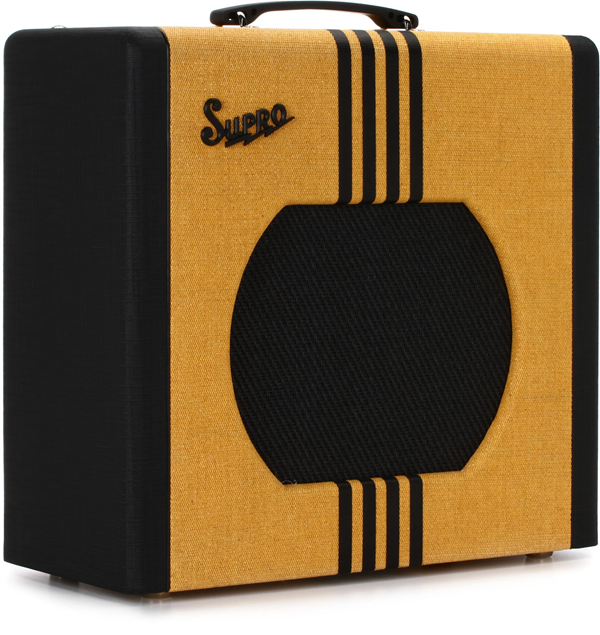

 | Supro Delta King 12 / Line out | n/a | |

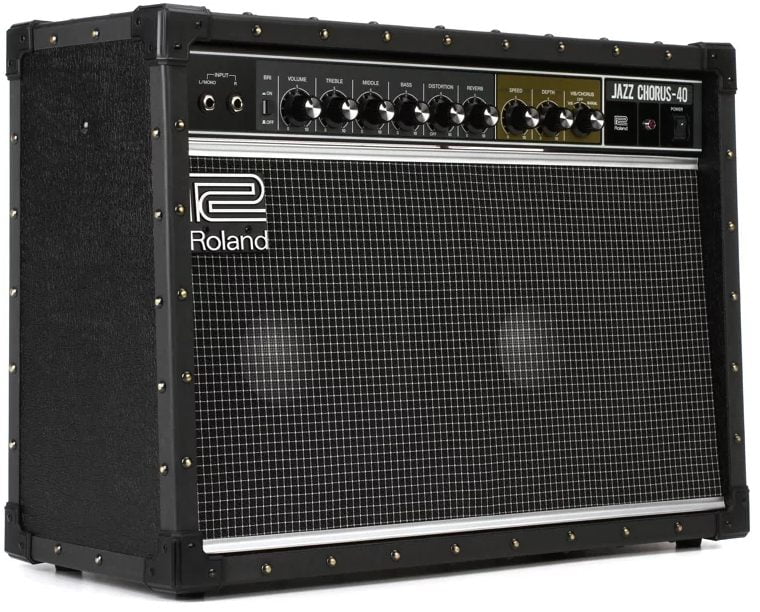

 | Roland Jazz Chorus JC-40 Combo Amp / Line out | n/a | |
 | Boss Katana Artist Series / Line out | n/a | |
 | Roland Jazz Chorus JC-120 / Line out | n/a | |

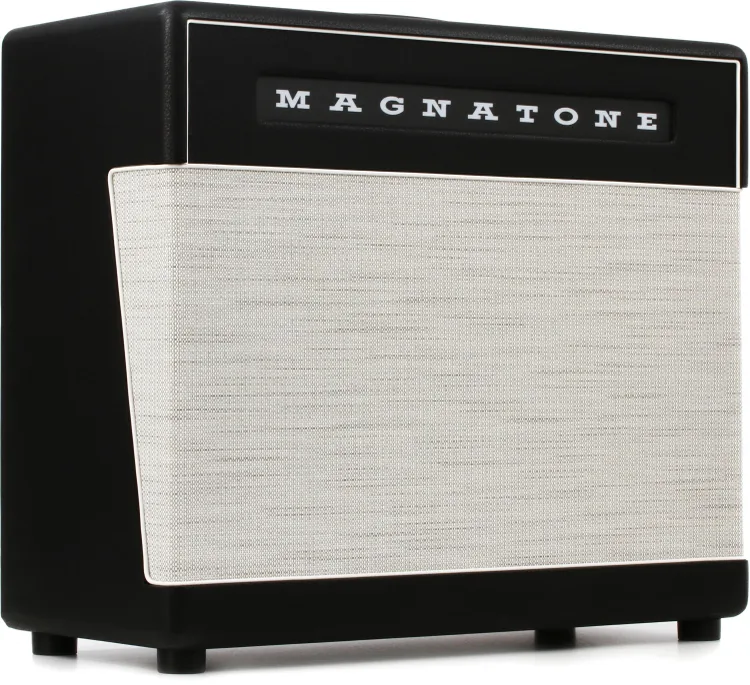

 | Magnatone Super Fifty-Nine M-80 / Compensated line out | n/a | |

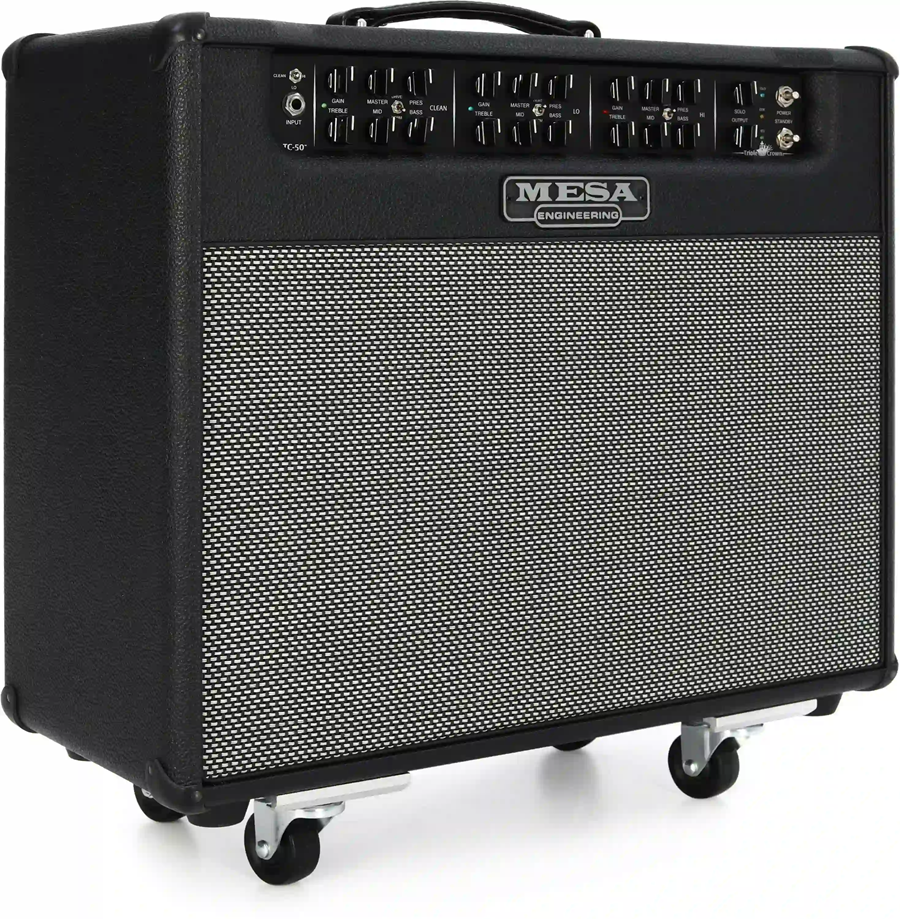

 | Mesa Boogie Triple Crown TC-50 / Line out, CabClone direct out | n/a | |

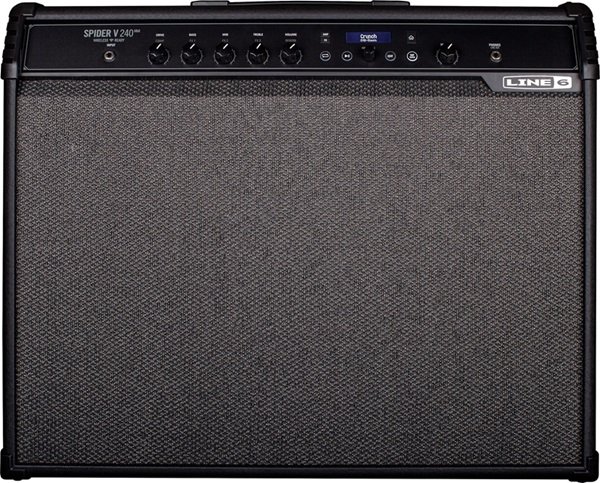

 | Line 6 Spider V 240 Combo / Stereo balanced direct outs | n/a |
Electric Guitar Amp Heads with Line Out (preamp and power amp)
Guitar amp heads are usually a preamp and power amp combination without the speaker cab. These will always have a least a speaker out and an FX loop, but I've put together a list of amps with a line out and/or direct out connection as well. Some of them even have both.
Guitar | Title | Rated | Browse |
|---|---|---|---|
| Hughes & Kettner TubeMeister 40 / Balanced direct out | n/a | |
 | Boss Portable Katana Head / Line level out | n/a | |
 | Bugera T50 Infinium Amp Head / Emulated direct out | n/a | |
 | EVH 5150III LBX Amp Head / Preamp out | n/a | |
 | Hughes & Kettner Black Spirit 200 / Emulated direct out | n/a | |
 | ENGL Amplifiers Fireball 25 / Line out | n/a | |
 | ENGL Ironball Special / IR balanced output | n/a | |
 | Mesa/Boogie Mark 5:25 / CabClone (speaker emulated), direct out | n/a | |
 | Mesa/Boogie Mark 5 (90-watt version) / Slave out | n/a | |
 | Blackstar HT20RH MKII / Balanced XLR direct out, line level out | n/a | |
 | Peavey Invective.120 Amp Head / Balanced XLR out | n/a | |
 | Mesa Boogie Triple Crown / CabClone direct out, line level out | n/a | |
 | Mesa Boogie Dual Rectifier / Slave out (to power amp) | n/a | |
 | Marshall 2525H Mini Jubilee / Balanced DI output | n/a | |
 | Line 6 Spider V 240 HC / Stereo balanced DI outputs | n/a | |
 | Seymour Duncan Power Stage 700 / Stereo balanced DI outputs | n/a | |
 | Bugera 333XL Infinium / Line out | n/a | |
 | Blackstar HT Club 50 Mark II / Emulated Direct Out | n/a | |
 | Crate Powerblock CPB150 Preamp / Balanced line out (XLR) | n/a | |
 | Marshall Origin (ORI50H) / DI Out | n/a | |
 | Randall RG Series Heads / XLR (balanced) output | n/a |
Electric Guitar Amp Heads with Line Out (preamp only)
In this section I've listed some guitar amps with line out connections that are only preamp, rack-mounted-style units without a power amp or speaker cab. These can either be paired with an external power amp or run straight into a PA system or recording interface.
Amps | Title | Rated | Browse |
|---|---|---|---|
 | Engl Special Edition Preamp E 570 / Balanced XLR stereo outs | n/a | |
 | Engl Tube Preamp E 530 / Balanced recording compensated output | n/a | |
 | Kemper Profiler Rack Rackmount Profiling Amp Head / Main and direct out | n/a | |
 | Avid Eleven Rack Preamp / Balanced XLR out and line level out | n/a | |
 | Mesa/Boogie Recording Preamp / Record out, live out (to power amp) | n/a |
Conclusion
To be clear, this list is not comprehensive.
However, it does cover some of the more popular and widely-liked guitar amps with line out and direct out connections. Keep in mind, I'm not ranking or rating these, just listing the ones I've confirmed to have this feature that also enjoy a good reputation in the guitar gear community.
My goal with lists like this one is to also keep it updated and get suggestions for amps that should be added to it.
Adding to the List
If you know of any guitar amps with a line out or direct out connection that I didn't mention here, please feel free to add it to the comments section below. Assuming it fits the bill, I'll update the page with your suggestion.
